AirDrive Serial Logger
AirDrive RS-485 Logger Module

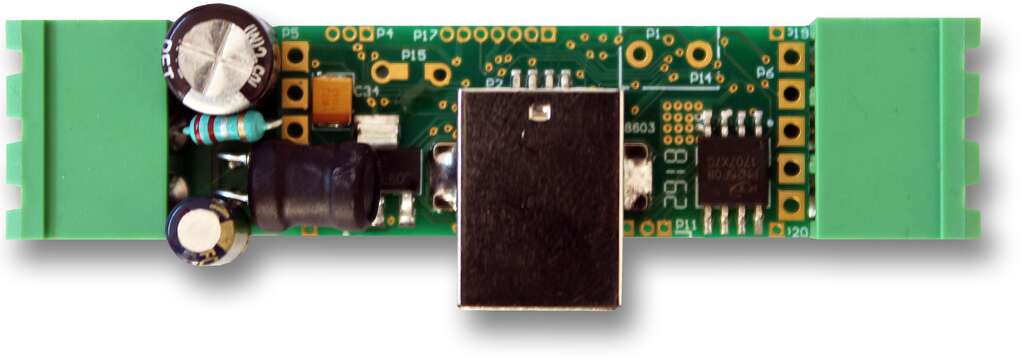

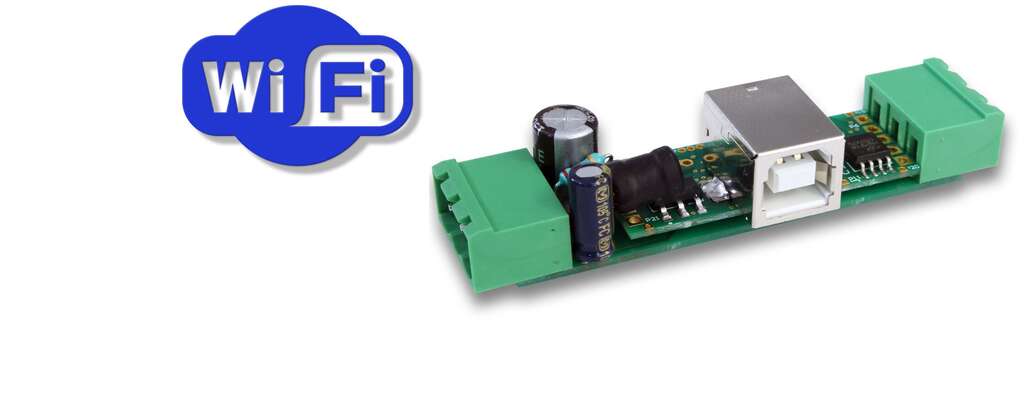

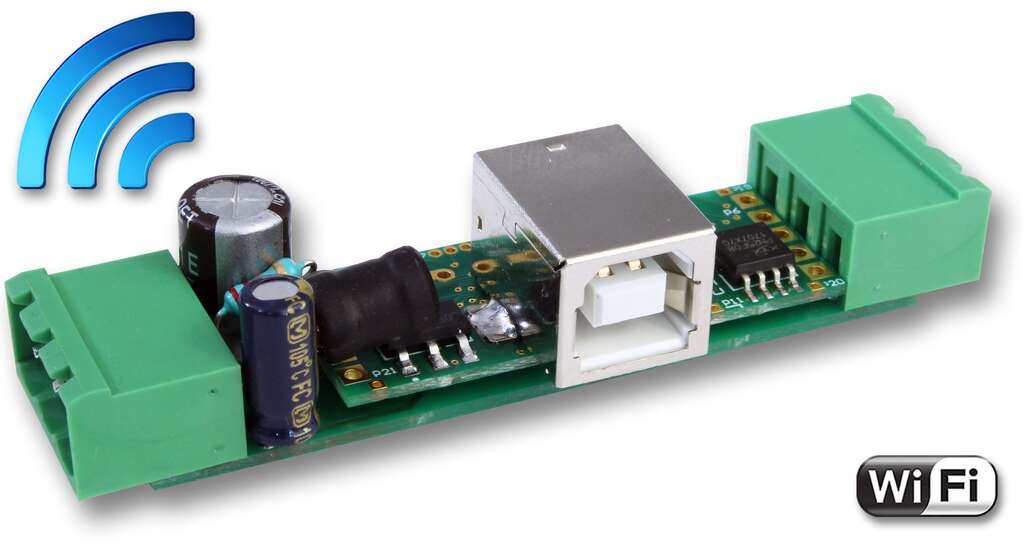

The AirDrive RS-485 Logger Module is a RS-485 logging module available as a PCB module with terminal block connectors. It can be accessed with any Wi-Fi device such as a computer, laptop, tablet, or smartphone.
$113.99
incl. VAT where applicable
In stock
Form factor
Key Features

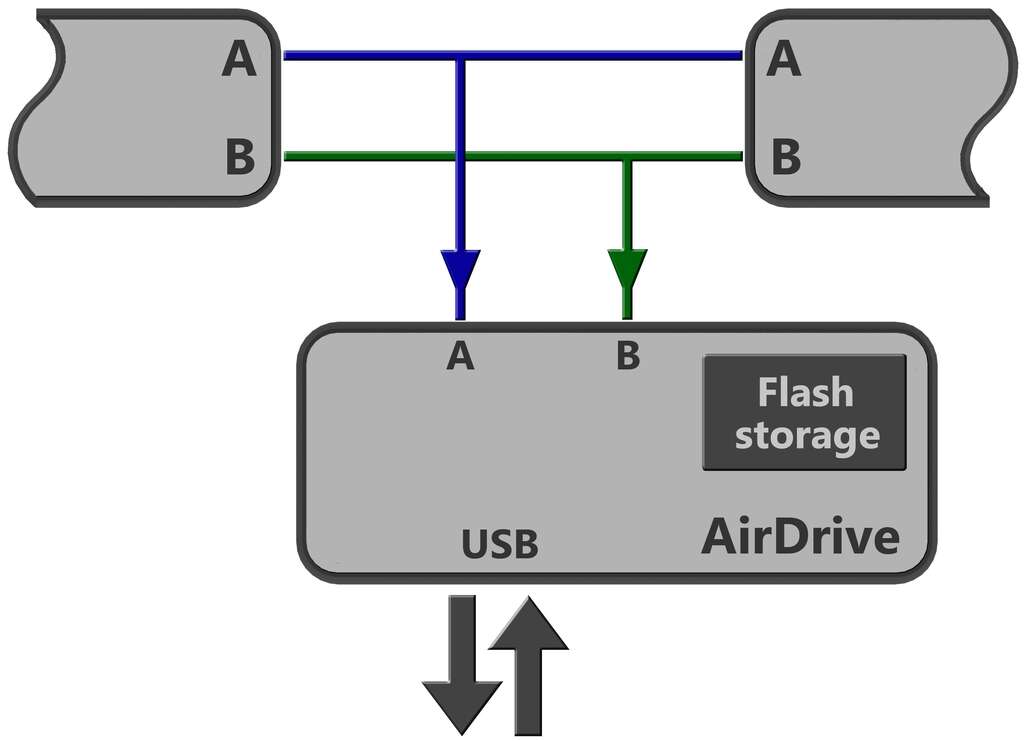

Logs asynchronous RS-485 transmission
Baud rates up to 115200 bps
Works with data signaling levels from +/-5V up
Modular form-factor with terminal block connectors
16 gigabytes of built-in memory
Logs asynchronous RS-485 transmission
Baud rates up to 115200 bps
Works with data signaling levels from +/-5V up
Modular form-factor with terminal block connectors
16 gigabytes of built-in memory
Industrial grade flash memory
Works as a Wi-Fi hotspot
Connect from any computer, smartphone, or tablet

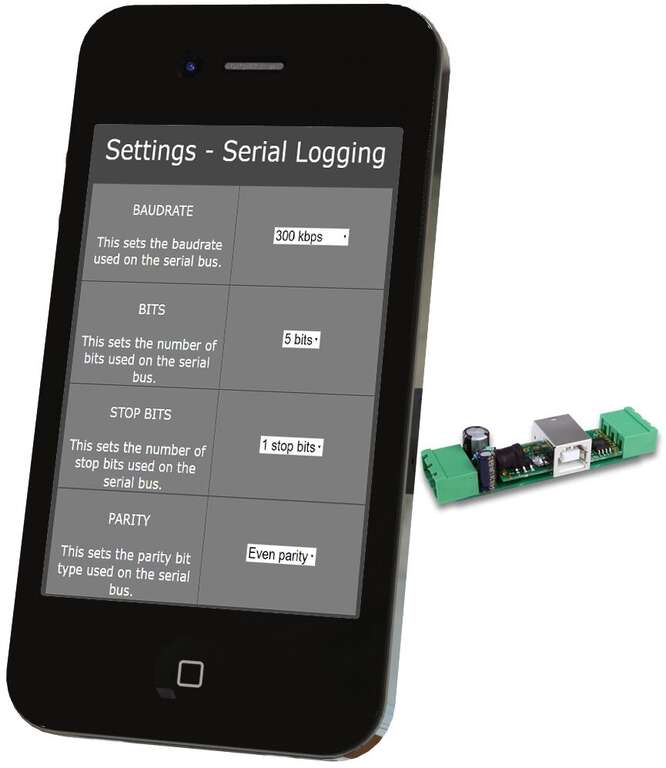

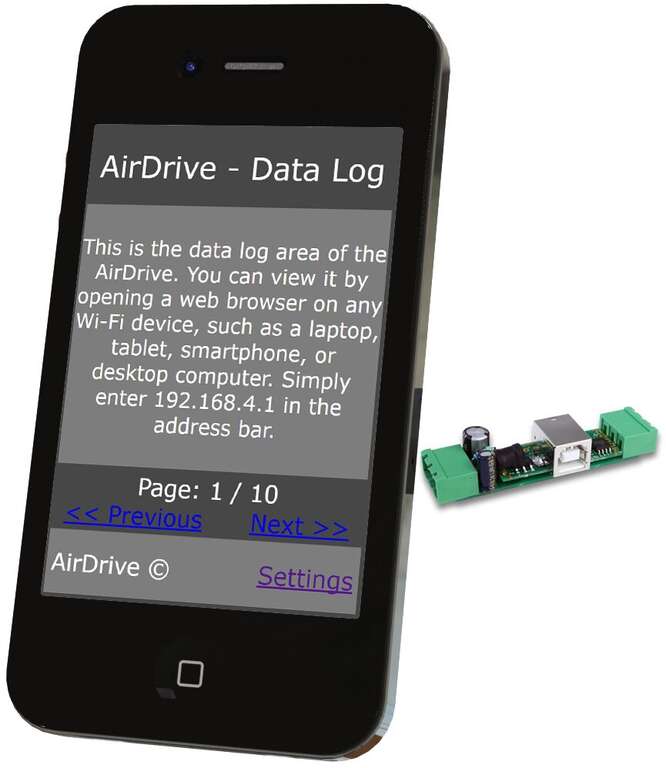

Access data from web browser, no software or app necessary
Retrieve data remotely without touching the device
Simple and clear WWW interface
Supports WEP, WPA, and WPA-2 network security

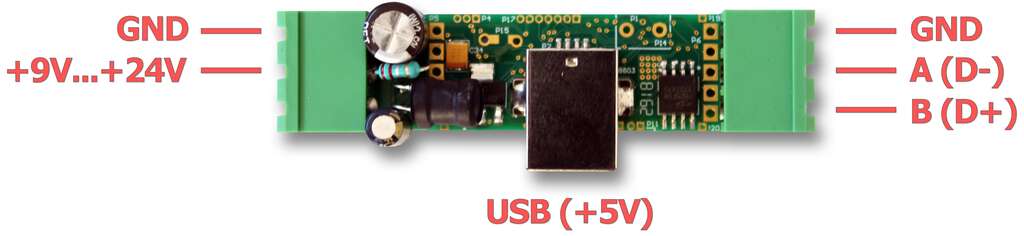

Dual power: +5V (USB) or +9V...+24V DC (terminal connector)
Integrated step-down switching power supply
USB cable included
— Product Details —
The AirDrive RS-485 Logger Module is a RS-485 logging module available as a PCB module with terminal block connectors. It can be accessed with any Wi-Fi device such as a computer, laptop, tablet, or smartphone.
